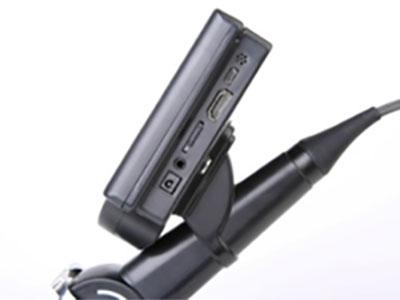

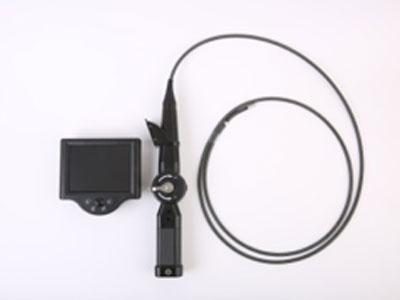

EC系列内窥镜的可扩展性非常强。它可以选用不同直径、长度规格的软管进行连接,支持2.8mm到6.5mm直径范围,配备适合的软管镜头就能在多种领域中使用,而且我们设备的接口都是采用国际标准。这摄像头也可以根据需求采用不同像素级别的,最高达200万。
特点PROBE Replaceable | Pixel: | 480,000 Pixel / 360,000 Pixel |
Diameter: | 6.0mm / 4.3mm / 3.9mm / 3.0mm /2.8mm | |
FOV: | 90° | |
View Direction | Farward View/ Farward view+Side view Dual Camera | |
Probe Length | 1~8 meters with tungsten mesh | |
Articulation | 4 Ways Mechanical control | |

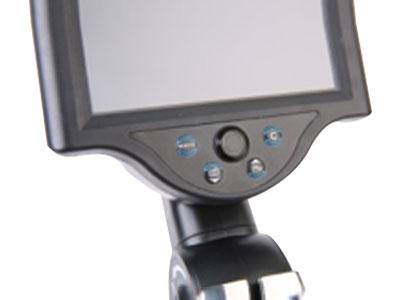

SYSTEM | Displayer | 5 Inch Touch Screen LCD |
Memory | TF Card Support 8G~128G | |
Output Interface | USB2.0/HDMI out/ Earphone out | |
Power | 2x18650 Li-battery/110~220V AC | |
Wireless | WiFi/Bluetooth for Android | |
Size | 305*135*110 (L*W*H) | |
Weight | 0.78Kg (Include Battery) | |
Waterproof | Probe: IP67 | |
Working Temperature | -10~50° | |
Software | Menu | Touch Screen control |
Image process | Image Zoom In&Out; Image Size & Color Editing; Image Contrast system; Image & Folder Rename | |
Lightness | 5 level LED/ Fibre light adjust (can support IR Light + White Light Dual Light Source) 5 level image brightness adjust | |
Storage | Image/Video/Audio record | |
Language | English/Chinese/French/Korean/German/Russian/Japanese/ etc. |
