ET60/40多功能工业内窥镜采用直侧视双摄像头系统,可以方便地呈现直探头难以发现的侧面视角,而且直视角与侧视角可以通过触摸屏随意切换,方便使用者全方位的了解到部件内部的状况。尤其是被检测物内部非常狭小、直视镜头难以看到侧面情况的应用中,这款内窥镜是最好的选择。ET60/40一般用于观察部件内部的焊缝、狭长管道内部的检查等。
特点:PROBE | Pixel: | 480,000 Pixel |
Diameter: | 6.0mm / 4.3mm / 3.9mm | |
FOV: | 90° | |
View Direction | Farward View/ Farward view+Side view Dual Camera | |
Probe Length | 1~8 meters with tungsten mesh | |

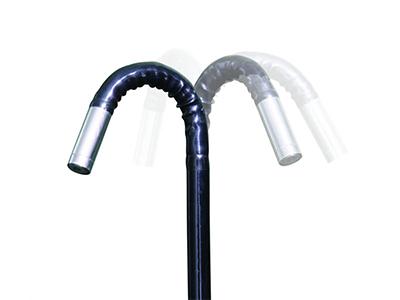

Articulation | 360°with Electrial or Mechanical control | |

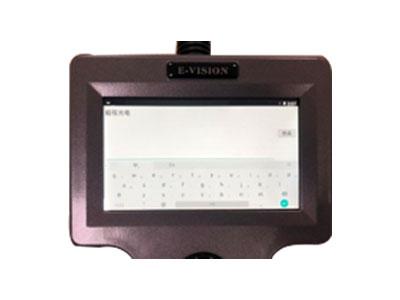

SYSTEM | Displayer | 5 Inch Touch Screen LCD (1920*1080) |
Memory | TF Card Support 8G~128G | |
Output Interface | USB2.0/HDMI out/ Earphone out | |
Power | 2x26650 Li-battery/110~220V AC | |
Wireless | WiFi/Bluetooth for Android | |
Size | 330*148*150 (L*W*H) | |
Weight | 1.2Kg (Include Battery) | |
Waterproof | Probe: IP67 | |
Working Temperature | -10~50° | |
Software | Menu | Touch Screen control |
Image process | Image Zoom In&Out; Image Size & Color Editing; Image Contrast system; Image & Folder Rename | |

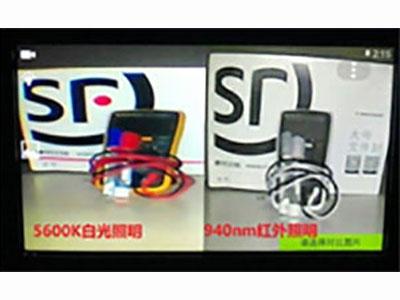

Lightness | 5 level LED/ Fibre light adjust (can support IR Light + White Light Dual Light Source) 5 level image brightness adjust | |
Storage | Image/Video/Audio record | |
Language | English/Chinese/French/Korean/German/Russian/Japanese/ etc. |
