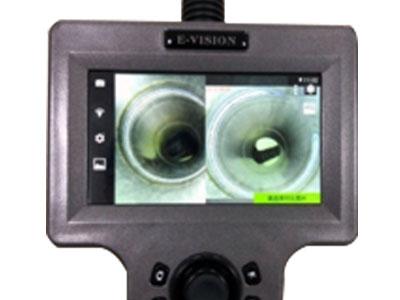

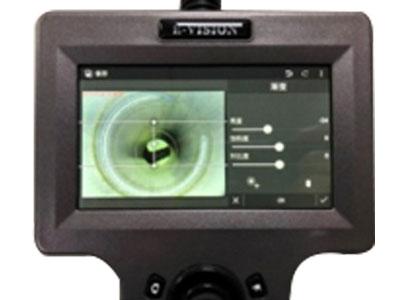

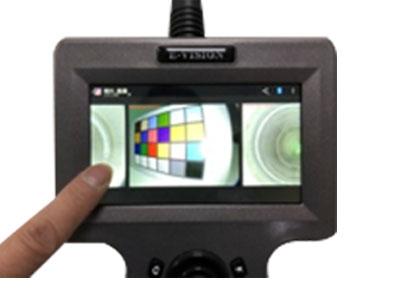

ET65系列全高清工业内窥镜能提供难以置信的高质量图像!它具有200万像素的成像质量,显示单元采用5寸液晶触摸显示屏,可以像操作手机一样方便地对图像进行放大缩小,获得更为直观的视觉感受,有利于快速定位成像点,找出问题所在。它可以广泛用于汽车检测、管道检查、铸件检查等领域。
基于我们的标准型号设计,我们也能提供定制化的服务,比如配置不同的镜头、软管、显示单元、操纵杆等,适应不同环境与应用场所的需求。一般我们推荐直径6.5mm的镜头,也可以根据需要配置不同直径、长度1米-6米之间的镜头探线。
特点PROBE | Pixel: | 2,000,000 Pixel |
Diameter: | 6.5mm | |
FOV: | 120° | |
View Direction | Farward View | |
Probe Length | 1~6 meters with tungsten mesh | |
Articulation | 360°with Electrial or Mechanical control | |
SYSTEM | Displayer | 5 Inch Touch Screen LCD (1920*1080) |
Memory | TF Card Support 8G~128G | |
Output Interface | USB2.0/HDMI out/ Earphone out | |
Power | 2x26650 Li-battery/110~220V AC | |

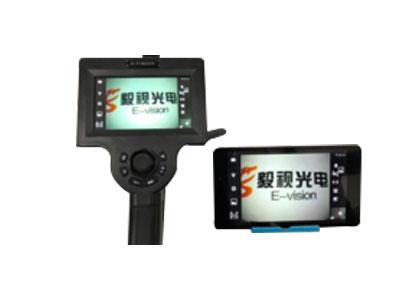

Wireless | WiFi/Bluetooth for Android | |
Size | 330*148*150 (L*W*H) | |
Weight | 1.2Kg (Include Battery) | |
Waterproof | Probe :IP67 | |
Working Temperature | -10~50° | |
Software | Menu | Touch Screen control |
Image process | Image Zoom In&Out; | |
Image Size & Color Editing; | ||
Image Contrast system; | ||
Image & Folder Rename | ||
Lightness | 5 level LED/ Fibre light adjust | |
5 level image brightness adjust | ||
Storage | Image/Video/Audio record | |
Language | English/Chinese/French/Korean/German/Russian/Japanese/ etc. |
